Littelfuse specializes in transient voltage suppression (TVS) diodes, which are designed to protect semiconductors from damage due to transient voltages. Browse our surface mount TVS diodes below.


15KPA-HR Datasheet Series Details 15KPA-HR Series V_R (V_so): 100, 110, 120, 130, 150, 160, 170, 17, 180, 18 Watts (W): 15000 I_PP 10x1000μs (A): 93.6, 84.5, 78.5, 72.5, 62.4, 58.4, 55.4, 515.4, 52.3, 488.7	15KPA-HRA Datasheet Series Details 15KPA-HRA Series V_R (V_so): 100, 110, 120, 130, 150, 160, 170, 17, 180, 18 Watts (W): 15000 I_PP 10x1000μs (A): 93.6, 84.5, 78.5, 72.5, 62.4, 58.4, 55.4, 515.4, 52.3, 488.7	30KPA-HR Datasheet Series Details 30KPA-HR Series V_R (V_so): 102, 108, 120, 132, 144, 150, 156, 160, 168, 170 Watts (W): 30000 I_PP 10x1000μs (A): 183.0, 172.9, 155.9, 142.3, 135.8, 129.8, 123.7, 120.0, 111.2, 110.2

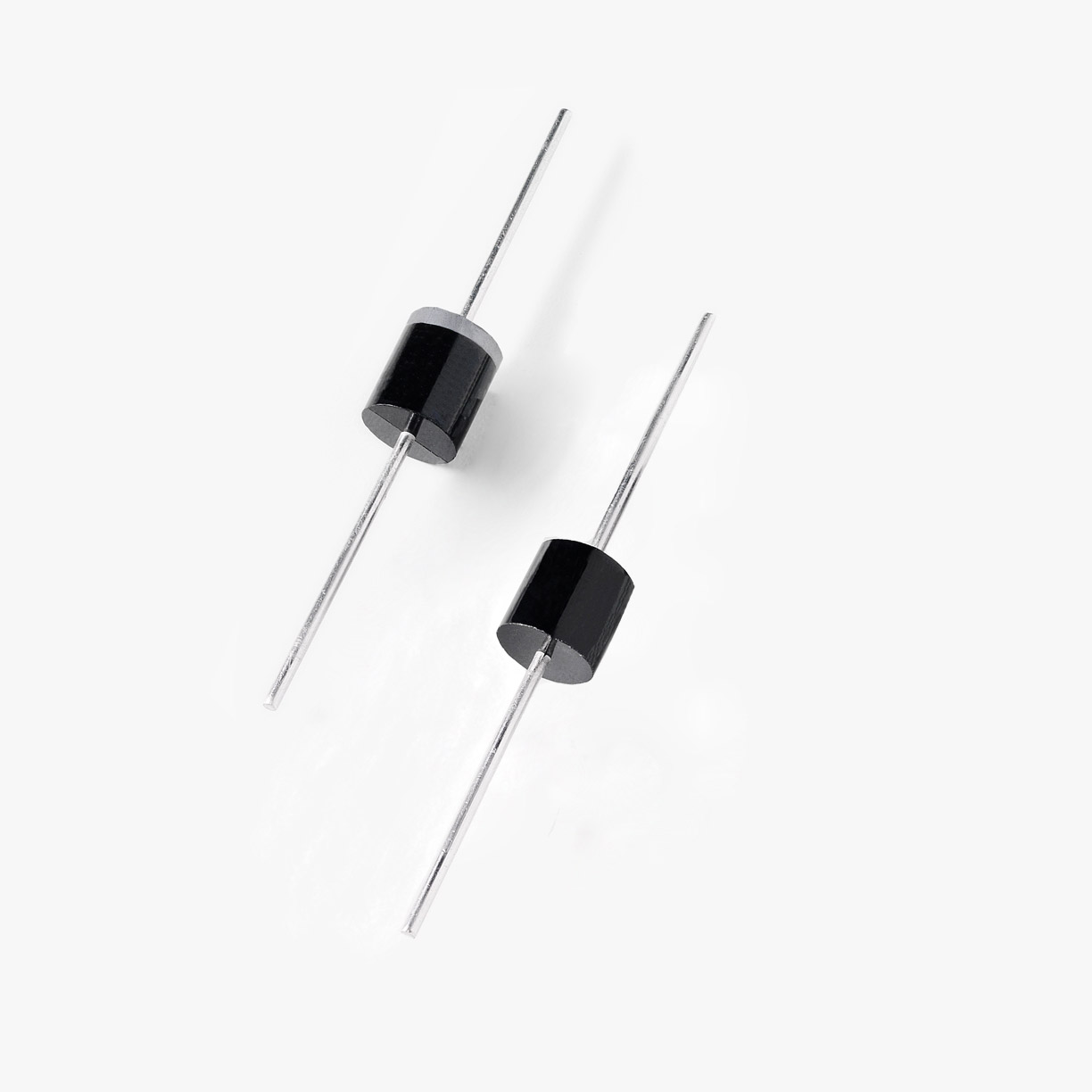

30KPA-HRA Datasheet Series Details 30KPA-HRA Series V_R (V_so): 102, 108, 120, 132, 144, 150, 156, 160, 168, 170 Watts (W): 30000 I_PP 10x1000μs (A): 183.0, 172.9, 155.9, 142.3, 135.8, 129.8, 123.7, 120.0, 111.2, 110.2	5KP-HR Datasheet Series Details 5KP-HR Series V_R (V_so): 100.0, 10.0, 110.0, 11.0, 120.0, 12.0, 130.0, 13.0, 14.0, 150.0 Watts (W): 5000 I_PP 10x1000μs (A): 31.5, 300.0, 28.8, 280.2, 26.4, 256.3, 24.4, 237.2, 219.8, 21.0	5KP-HRA Datasheet Series Details 5KP-HRA Series V_R (V_so): 100.0, 10.0, 110.0, 11.0, 120.0, 12.0, 130.0, 13.0, 14.0, 150.0 Watts (W): 5000 I_PP 10x1000μs (A): 31.5, 300.0, 28.8, 280.2, 26.4, 256.3, 24.4, 237.2, 219.8, 21.0

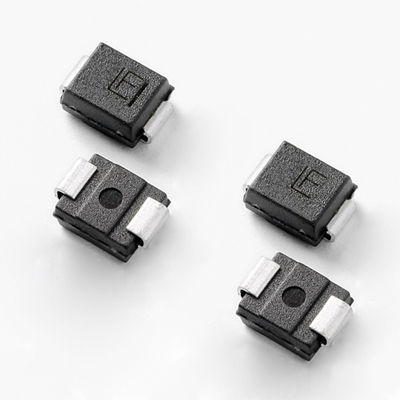

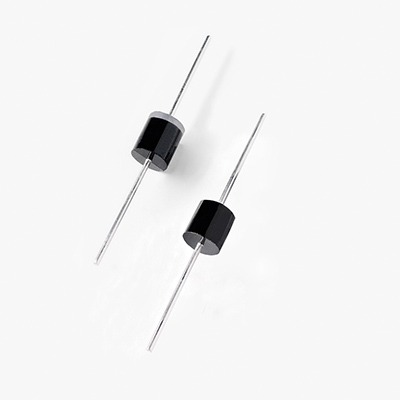

SLD Datasheet Series Details High Power Automotive TVS Diode For Protection Against Load Dump Conditions V_R (V_so): 10, 11, 12, 13, 14, 15, 16, 17, 18, 20 Watts (W): 5000 I_PP 10x1000μs (A): 300.0, 280.2, 256.3, 237.2, 219.8, 209.0, 196.2, 184.8, 174.7, 157.4	SMBJ-HR Datasheet Series Details Surface Mount, 600W, High Reliability Series V_R (V_so): 100, 10, 110, 11, 120, 12, 130, 13, 14, 150 Watts (W): 600 I_PP 10x1000μs (A): 3.7, 35.3, 3.4, 33, 3.1, 30.2, 2.9, 28, 25.9, 2.5	SMBJ-HRA Datasheet Series Details Surface Mount, 600W, High Reliability Series with 100% screen sorting process V_R (V_so): 100, 10, 110, 11, 120, 12, 130, 13, 14, 150 Watts (W): 600 I_PP 10x1000μs (A): 3.7, 35.3, 3.4, 33, 3.1, 30.2, 2.9, 28, 25.9, 2.5

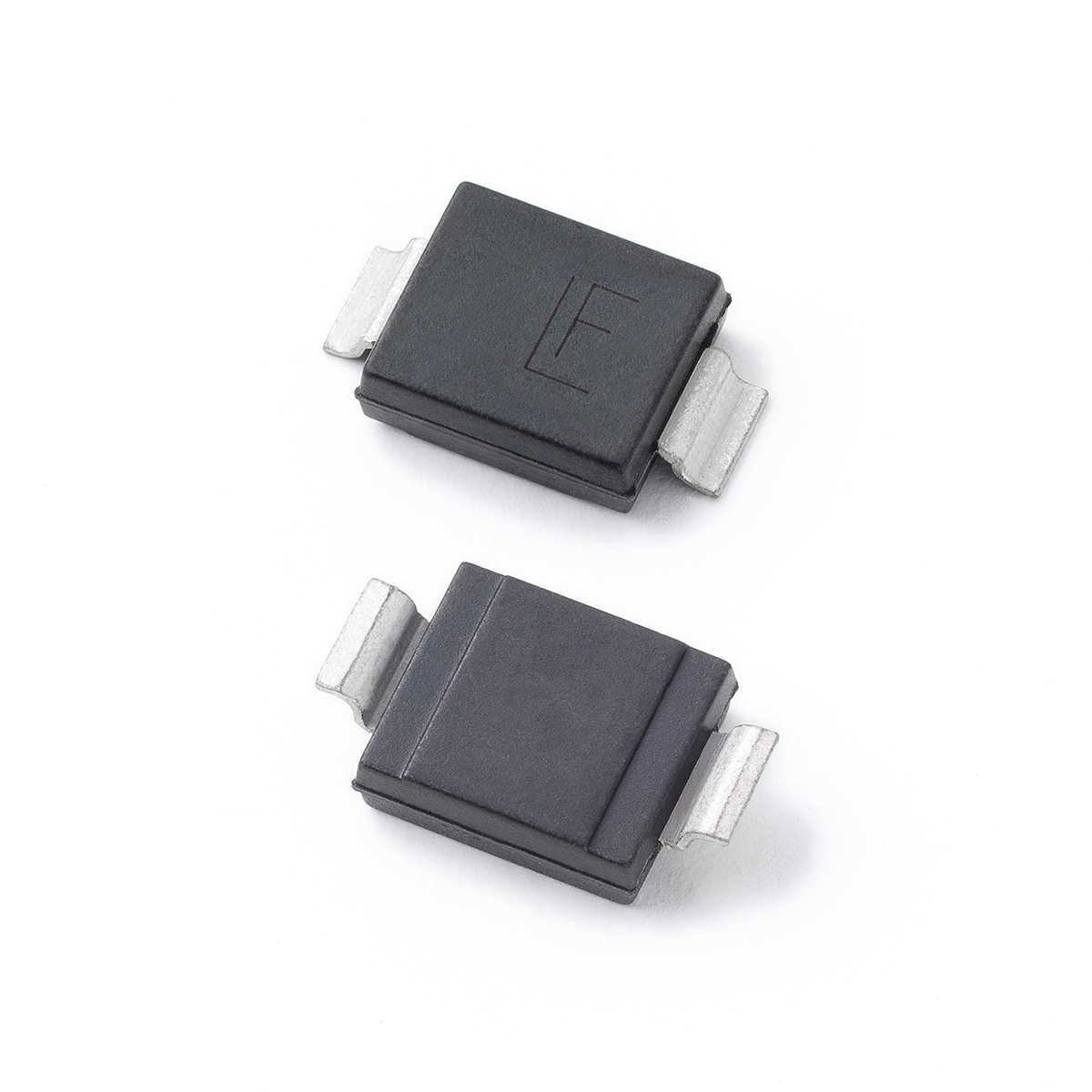

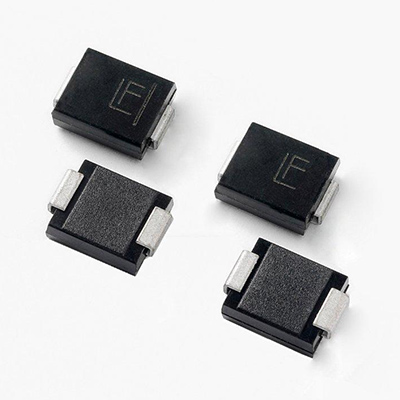

SMCG-HR Datasheet Series Details Surface Mount, Hi-Rel 1500W TVS Diode, 100% Screen and Group B Test Sorting, DO-215AB V_R (V_so): 100, 10, 110, 11, 120, 12, 13, 14, 15, 16 Watts (W): 1500 I_PP 10x1000μs (A): 9.3, 88.3, 8.5, 82.5, 7.8, 75.4, 69.8, 64.7, 61.5, 57.7	SMCG-HRA Datasheet Series Details Surface Mount, Hi-Rel 1500W TVS Diode, 100% Screen Test Sorting, DO-215AB V_R (V_so): 100, 10, 110, 11, 120, 12, 13, 14, 15, 16 Watts (W): 1500 I_PP 10x1000μs (A): 9.3, 88.3, 8.5, 82.5, 7.8, 75.4, 69.8, 64.7, 61.5, 57.7	SMCJ-HR Datasheet Series Details Surface Mount, 1500W, High Reliability Series V_R (V_so): 100, 10, 110, 11, 120, 12, 130, 13, 14, 150 Watts (W): 1500 I_PP 10x1000μs (A): 9.3, 88.3, 8.5, 82.5, 7.8, 75.4, 7.2, 69.8, 64.7, 6.2

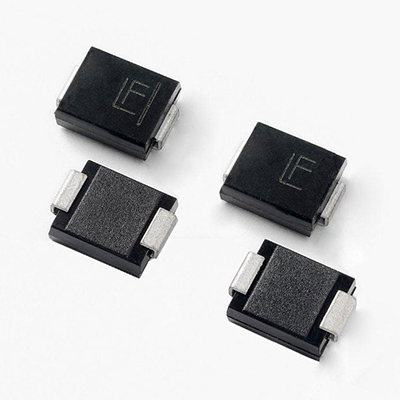

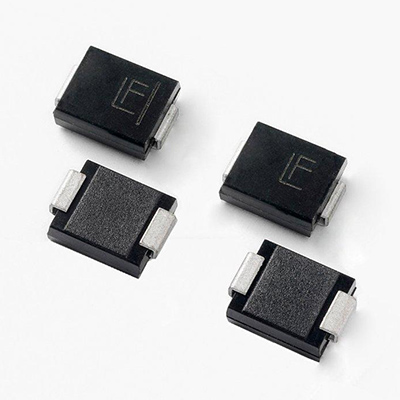

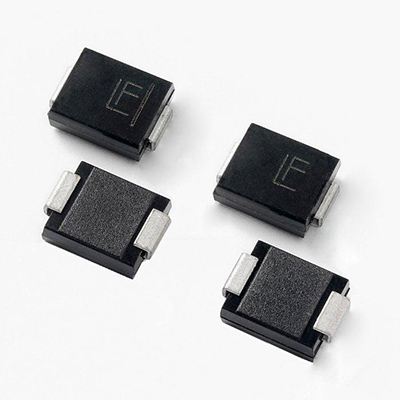

SMCJ-HRA Datasheet Series Details Surface Mount, 1500W, High Reliability Series V_R (V_so): 100, 10, 110, 11, 120, 12, 130, 13, 14, 150 Watts (W): 1500 I_PP 10x1000μs (A): 9.3, 88.3, 8.5, 82.5, 7.8, 75.4, 7.2, 69.8, 64.7, 6.2	SMDJ-HR Datasheet Series Details Surface Mount, 3000W, High Reliability Series V_R (V_so): 100, 10, 110, 11, 120, 12, 130, 13, 14, 150 Watts (W): 3000 I_PP 10x1000μs (A): 18.5, 176.5, 16.9, 164.8, 15.5, 150.8, 14.4, 139.5, 129.3, 12.3	SMDJ-HRA Datasheet Series Details High Reliability Series, Surface Mount 3000W V_R (V_so): 100, 10, 110, 11, 120, 12, 130, 13, 14, 150 Watts (W): 3000 I_PP 10x1000μs (A): 18.5, 176.5, 16.9, 164.8, 15.5, 150.8, 14.4, 139.5, 129.3, 12.3

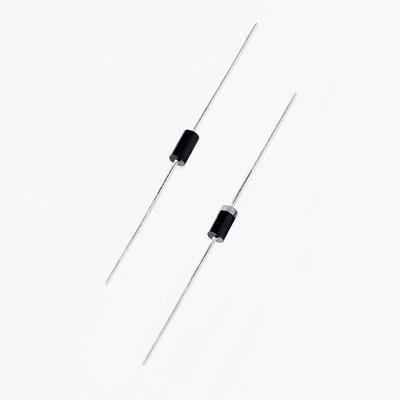

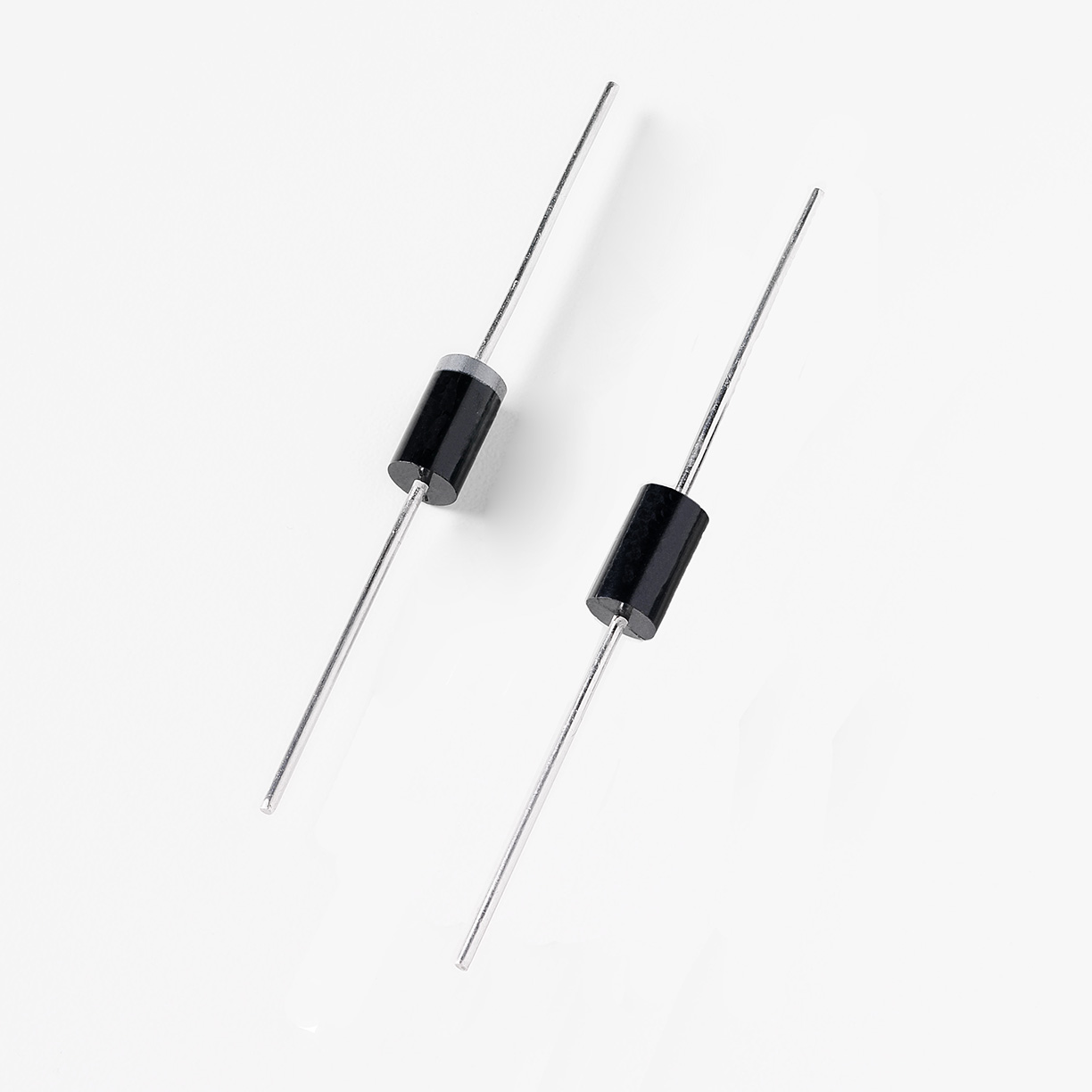

TP1.5KE Datasheet Series Details Axial Leaded – 1500W > TP1.5KE series V_R (V_so): 10.2, 11.1, 12.8, 13.6, 15.3, 17.1, 18.8, 20.5, 23.1, 25.6 Watts (W): 1500 I_PP 10x1000μs (A): 91, 83.5, 71.7, 67.6, 60.3, 54.9, 49.7, 45.8, 40.5, 36.7	TP5KP Datasheet Series Details Axial Leaded – 5000W > TP5KP series V_R (V_so): 11, 12, 13, 14, 15, 16, 17, 18, 20, 22 Watts (W): 5000 I_PP 10x1000μs (A): 280.2, 256.3, 237.2, 219.8, 209, 196.2, 184.8, 174.7, 157.4, 143.7	TP6KE Datasheet Series Details TP6KE Series V_R (V_so): 11.10, 12.80, 13.60, 15.30, 17.10, 18.80, 20.50, 23.10, 25.60, 28.20 Watts (W): 600 I_PP 10x1000μs (A): 33.5, 28.8, 27.1, 24.2, 22.0, 19.9, 18.4, 16.3, 14.7, 13.3
TPSMA6L Datasheet Series Details Automotive Surface Mount 600W - Qualified to AEC-Q101 V_R (V_so): 10, 11, 12, 13, 14, 15, 16, 17, 18, 20 Watts (W): 600 I_PP 10x1000μs (A): 35.3, 33, 30.2, 28, 25.9, 24.6, 23.1, 21.8, 20.6, 18.6	TPSMB Datasheet Series Details Qualified to AEC-Q101 V_R (V_so): 11.10, 12.80, 13.60, 15.30, 17.10, 18.80, 20.50, 23.10, 25.60, 28.20 Watts (W): 600 I_PP 10x1000μs (A): 33.5, 28.8, 27.1, 24.2, 22, 19.9, 18.4, 16.3, 14.7, 13.3	TPSMC Datasheet Series Details Surface Mount, 1500W TVS Diode-AEC-Q101 Qualified V_R (V_so): 10.2, 11.1, 12.8, 13.6, 15.3, 17.1, 18.8, 20.5, 23.1, 25.6 Watts (W): 1500 I_PP 10x1000μs (A): 91, 83.5, 71.7, 67.6, 60.3, 54.9, 49.7, 45.8, 40.5, 36.7
TPSMD Datasheet Series Details Surface Mount, 3000W TVS Diode-AEC-Q101 Qualified V_R (V_so): 10, 11, 12, 13, 14, 15, 16, 17, 18, 20 Watts (W): 3000 I_PP 10x1000μs (A): 176.5, 164.8, 150.8, 139.5, 129.3, 123, 115.4, 108.7, 102.7, 92.6	TPSMF4L Datasheet Series Details Surface Mount – 400W V_R (V_so): 10, 11, 12, 13, 14, 15, 16, 17, 18, 20 Watts (W): 400, 370 I_PP 10x1000μs (A): 23.5, 22, 20.1, 18.6, 17.2, 16.4, 15.4, 14.5, 13.7, 12.3
