Littelfuse specializes in transient voltage suppression (TVS) diodes, which are designed to protect semiconductors from damage due to transient voltages. Browse our surface mount TVS diodes below.

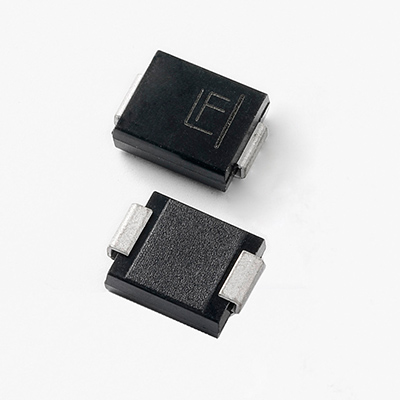

1.5SMC Datasheet Series Details 1500W Surface Mount Transient Voltage Supressors V_R (V_so): 8.55, 85.5, 9.4, 94, 10.2, 102, 11.1, 111, 12.8, 128 Watts (W): 1500 I_PP 10x1000µs (A): 104.8, 11.1, 97.4, 10, 91, 9.2, 83.5, 8.5, 71.7, 7.3	1KSMB Datasheet Series Details 1000W Surface Mount Transient Voltage Suppression (TVS) Diode - 1KSMB Series V_R (V_so): 8.1, 81, 85.5, 8.55, 8.92, 89.2, 94, 9.4, 9.72, 97.2 Watts (W): 1000 I_PP 10x1000µs (A): 66.7, 7, 7.3, 69, 61.7, 6.3, 6.6, 64.1, 58.3, 5.8	3.0SMC Datasheet Series Details Surface Mount Transient Voltage (TVS) Diode V_R (V_so): 20, 24, 28, 30, 33 MIN V_BR@I_T (V) : 22.2, 26.7, 31.1, 33.3, 36.7 MAX V_BR@I_T (V) : 24.5, 29.5, 34.4, 36.8, 40.6
4.0SMDJ24A Datasheet Series Details 4000W TVS Diode 4.0SMDJ24A V_R (V_so): 24 Watts (W): 4000 I_PP 10x1000µs (A): 103	5.0SMDJ Datasheet Series Details 5000W Surface Mount Transient Voltage Suppresssion (TVS) Diode - 5.0SMDJ Series V_R (V_so): 100, 110, 12, 120, 13, 130, 14, 15, 150, 16 Watts (W): 5000 I_PP 10x1000µs (A): 30.9, 28.3, 252, 26, 233, 24, 216, 205, 20.6, 193	LTKAK10 Datasheet Series Details SMTO-218 - 10KA V_R (V_so): 58, 66, 76 MIN V_BR@I_T (V) : 64, 72, 85 MAX V_BR@I_T (V) : 70, 80, 95

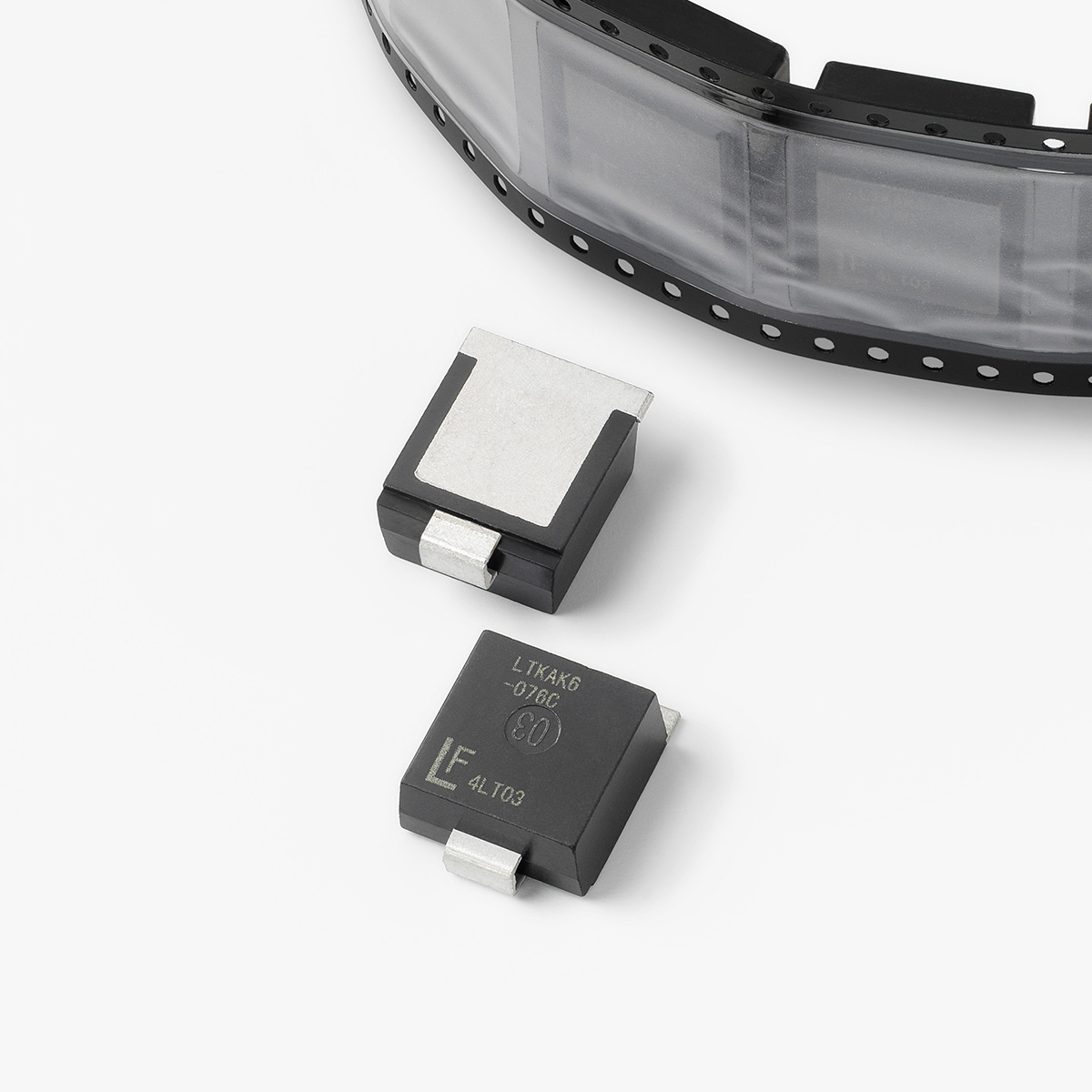

LTKAK6 Datasheet Series Details SMTO-218 - 6KA V_R (V_so): 58, 66, 76 MIN V_BR@I_T (V) : 64, 72, 85 MAX V_BR@I_T (V) : 70, 80, 95	P4SMA Datasheet Series Details 400W Surface Mount Transient Voltage (TVS) Diode - P4SMA V_R (V_so): 8.55, 85.5, 9.4, 94, 10.2, 102, 11.1, 111, 12.8, 128 Watts (W): 400 I_PP 10x1000µs (A): 28.3, 3, 26.3, 2.7, 24.6, 2.5, 22.5, 2.3, 19.3, 2	P4SMA-E Datasheet Series Details 400W TVS in DO-214AC, EPI Silicon Technology V_R (V_so): 300, 342, 376 Watts (W): 400 I_PP 10x1000µs (A): 0.90, 0.75, 0.68

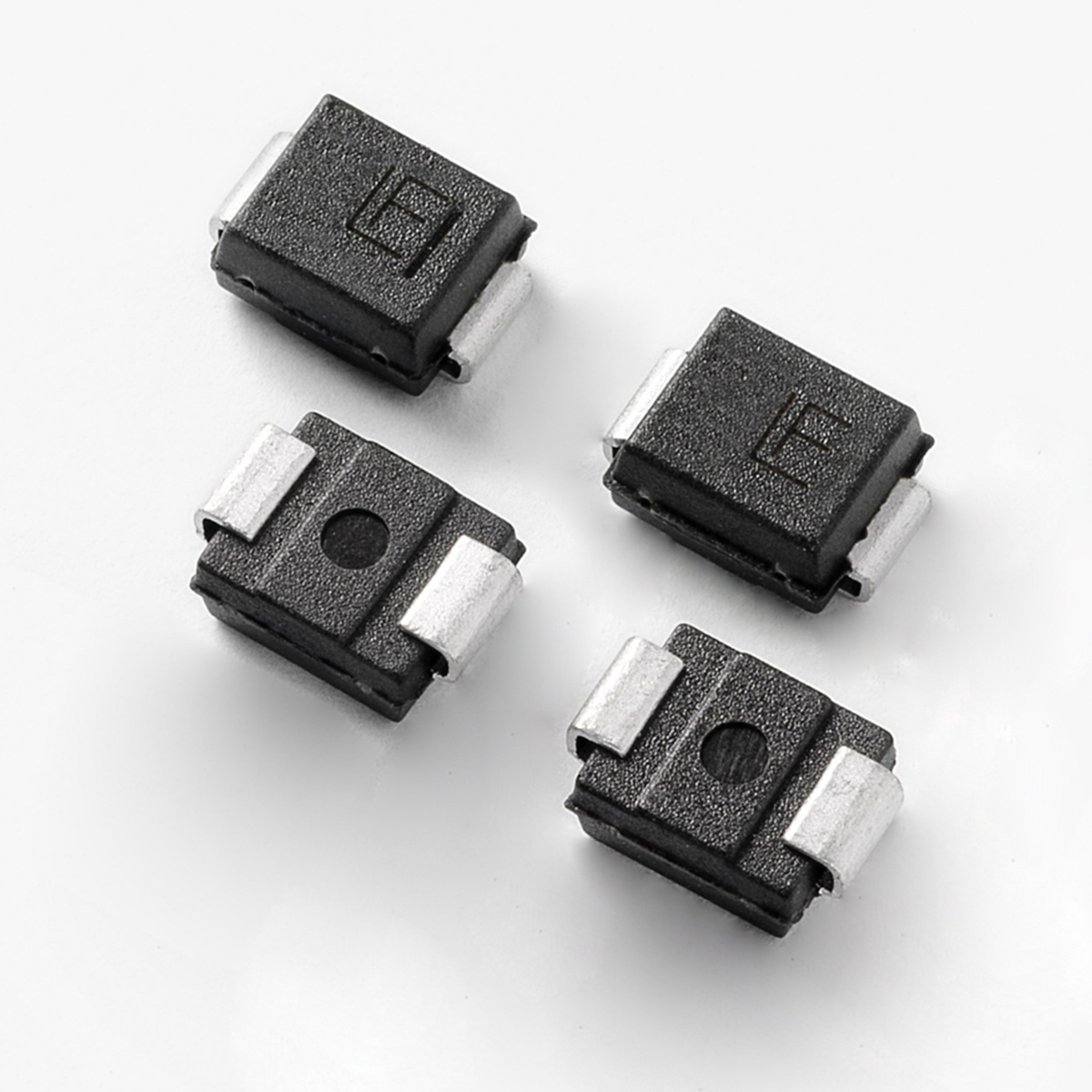

P6SMB Datasheet Series Details 600W Surface Mount Transient Voltage Suppresssion (TVS) Diode - P6SMB Series V_R (V_so): 8.1, 81, 85.5, 8.55, 8.92, 89.2, 94, 9.4, 9.72, 97.2 Watts (W): 600 I_PP 10x1000µs (A): 42.1, 4.5, 39.1, 4, 36.5, 3.7, 33.5, 3.4, 28.8, 2.9	P6SMB-E Datasheet Series Details 600W TVS in DO-214AA, EPI Silicon Technology V_R (V_so): 300, 342, 376 Watts (W): 600 I_PP 10x1000µs (A): 1.30, 1.10, 1.00	SACB Datasheet Series Details 500W Surface Mount Transient Voltage Suppression (TVS) Diode - SACB Series V_R (V_so): 10, 12, 15, 18, 22, 26, 30, 36, 45, 5 Watts (W): 500 I_PP 10x1000µs (A): 29, 25, 20, 15, 14, 11.1, 10, 8.6, 6.8, 44
SMA6J Datasheet Series Details Surface Mount 600W V_R (V_so): 12, 5 Watts (W): 600 I_PP 10x1000µs (A): 30.2, 65.3	SMA6L Datasheet Series Details Surface Mount 600W V_R (V_so): 10, 11, 12, 13, 14, 15, 16, 17, 18, 20 Watts (W): 600 I_PP 10x1000µs (A): 35.3, 33, 30.2, 28, 25.9, 24.6, 23.1, 21.8, 20.6, 18.6	SMAJ Datasheet Series Details 400W Surface Mount Transient Voltage Supressors V_R (V_so): 10, 100, 11, 110, 12, 120, 13, 130, 14, 15 Watts (W): 400 I_PP 10x1000µs (A): 23.5, 2.5, 22, 2.3, 20.1, 2.1, 18.6, 1.9, 17.2, 16.4

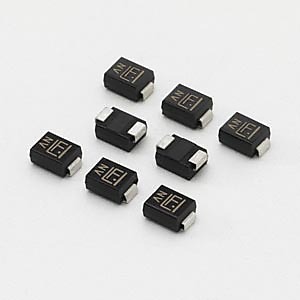

SMAJ-E Datasheet Series Details 400W TVS in DO-214AC, EPI Silicon Technology V_R (V_so): 300, 350 Watts (W): 400 I_PP 10x1000µs (A): 0.80, 0.70	SMBJ Datasheet Series Details 600W Surface Mount TVS Diode V_R (V_so): 10, 100, 11, 110, 12, 120, 13, 130, 14, 15 Watts (W): 600 I_PP 10x1000µs (A): 35.3, 3.7, 33, 3.4, 30.2, 3.1, 28, 2.9, 25.9, 24.6	SMBJ-E Datasheet Series Details 600W TVS in DO-214AA, EPI Silicon Technology V_R (V_so): 300, 350 Watts (W): 600 I_PP 10x1000µs (A): 1.30, 1.10
SMCJ Datasheet Series Details RoHS Compliant Surface Mount Transient Voltage Suppressor V_R (V_so): 10, 100, 11, 110, 12, 120, 13, 130, 14, 15 Watts (W): 1500 I_PP 10x1000µs (A): 88.3, 9.3, 82.5, 8.5, 75.4, 7.8, 69.8, 7.2, 64.7, 61.5	SMDJ Datasheet Series Details 3000W Surface Mount Transient Voltage Suppresssion (TVS) Diode - SMDJ Series V_R (V_so): 10, 100, 11, 110, 12, 120, 13, 130, 14, 15 Watts (W): 3000 I_PP 10x1000µs (A): 176.5, 18.5, 164.8, 16.9, 150.8, 15.5, 139.5, 14.4, 129.3, 123	SMF Datasheet Series Details Surface Mount 200W V_R (V_so): 10, 11, 12, 13, 14, 15, 16, 17, 18, 20 Watts (W): 200 I_PP 10x1000µs (A): 11.8, 11, 10.1, 9.3, 8.6, 8.2, 7.7, 7.2, 6.8, 6.2

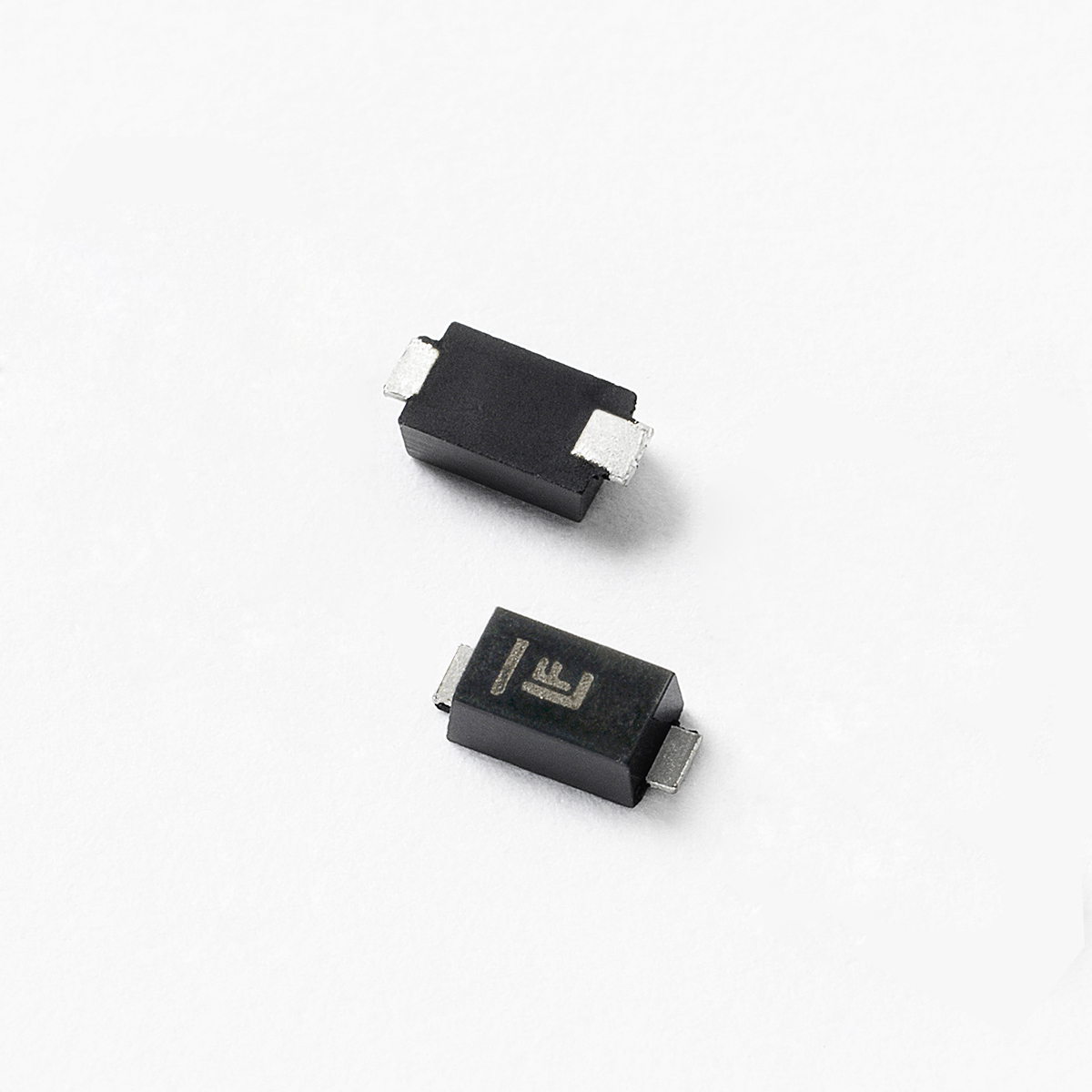

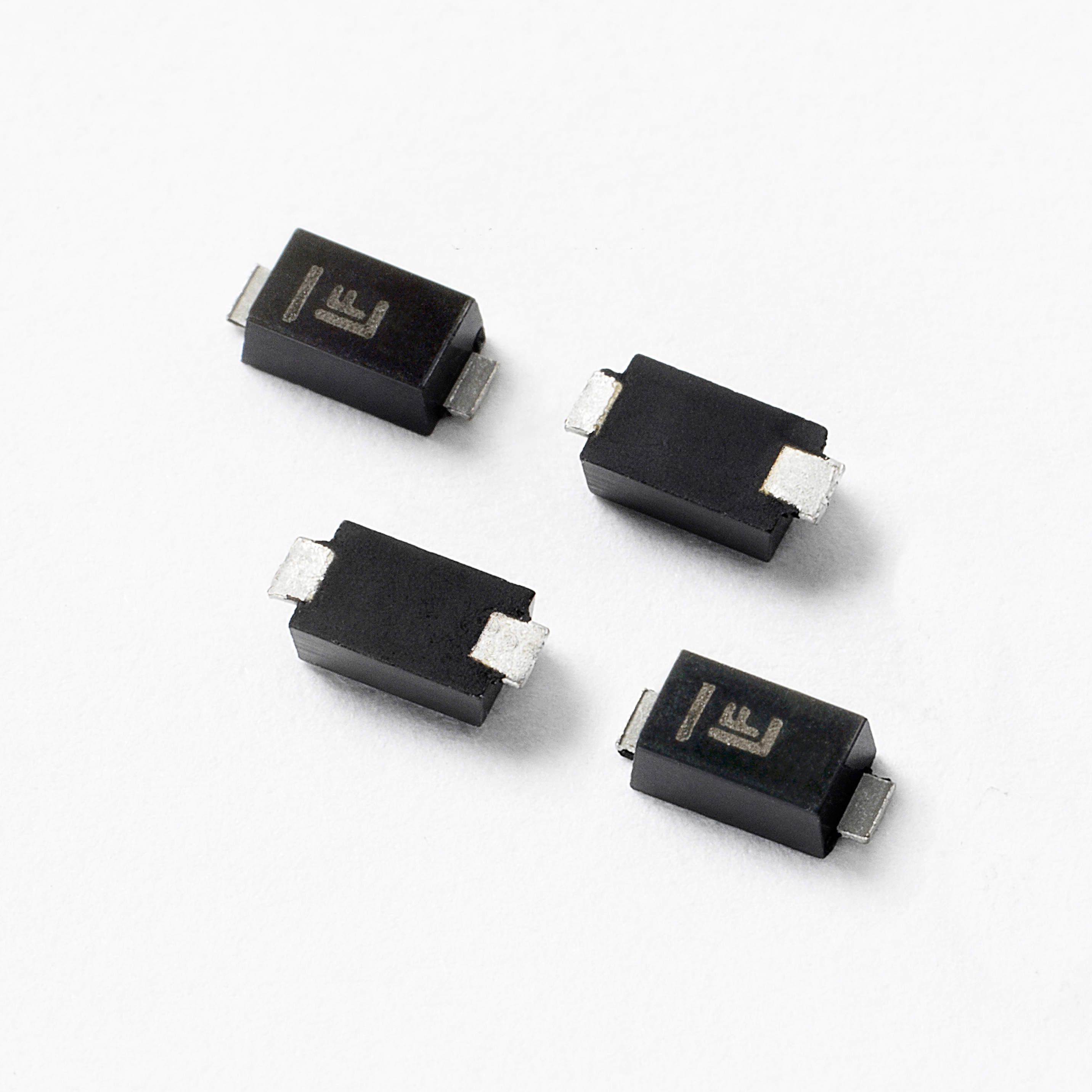

SMF3.3 Series Datasheet Series Details Surface Mount – 200W > SMF3.3 Series V_R (V_so): 3.3 Watts (W): 200 I_PP 10x1000µs (A): 30	SMF4L Datasheet Series Details Surface Mount – 400W V_R (V_so): 10, 11, 12, 13, 14, 15, 16, 17, 18, 20 Watts (W): 400, 370 I_PP 10x1000µs (A): 23.6, 22, 20.2, 18.6, 17.2, 16.4, 15.4, 14.5, 13.7, 12.4	SMTAK3 Datasheet Series Details 3000W, D.C. line protection, Bi-directional V_R (V_so): 15, 58, 66, 76 MIN V_BR@I_T(V): 16, 64, 72, 85 MAX V_BR@I_T(V): 19, 70, 80, 95
