Серия SL1021A обеспечивает высокий уровень производительности при быстро растущих переходных процессах при грозовых разрядах.

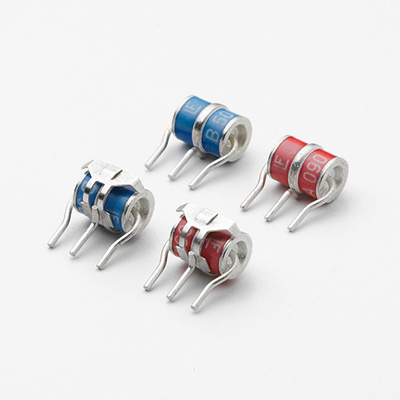

Даташит на газоразрядник серии SL1021A
Особенности:
- Низкие потери
- Отличный отклик на быстрорастущие переходные процессы.
- Сверхнизкая емкость
- Возможен термозамыкатель
- Соответствует RoHS
Приложения:
- Широкополосное оборудование
- Оборудование ADSL
- Оборудование XDSL
- Спутниковое и кабельное телевидение
- Общее телекоммуникационное оборудование
- Сплиттеры
Таблица параметров:
| Артикул | VMIN Spark (V) |
VNom Spark (V) |
VMAX Spark (V) |
Max Impulse Breakdown @ 100V/?s (V) |
Max Impulse Breakdown @ 1kV/?s (V) |
Co (pF) | Surge Life (Shots) |
Impulse Discharge Current @8/20?s (kA) | AC Discharge Current (A) |
DC Holdover (V) |
| SL1021A090C | 70 | 90 | 120 | 550 | 700 | 1 | 5 | 10 | 10 | 52 |
| SL1021A090R | 70 | 90 | 120 | 550 | 700 | 1 | 5 | 10 | 10 | 52 |
| SL1021A090RF | 70 | 90 | 120 | 550 | 700 | 1 | 5 | 10 | 10 | 52 |
| SL1021A200C | 150 | 200 | 250 | 350 | 450 | 1 | 5 | 10 | 10 | 135 |
| SL1021A200R | 150 | 200 | 250 | 350 | 450 | 1 | 5 | 10 | 10 | 135 |
| SL1021A200RF | 150 | 200 | 250 | 350 | 450 | 1 | 5 | 10 | 10 | 135 |
| SL1021A230C | 184 | 230 | 276 | 350 | 500 | 1 | 5 | 10 | 10 | 135 |
| SL1021A230CF | 184 | 230 | 276 | 350 | 500 | 1 | 5 | 10 | 10 | 135 |
| SL1021A230R | 184 | 230 | 276 | 350 | 500 | 1 | 5 | 10 | 10 | 135 |
| SL1021A230RF | 184 | 230 | 276 | 350 | 500 | 1 | 5 | 10 | 10 | 135 |
| SL1021A230X | 184 | 230 | 276 | 350 | 450 | 1 | 5 | 10 | 10 | 135 |
| SL1021A250C | 200 | 250 | 300 | 400 | 600 | 1 | 5 | 10 | 10 | 135 |
| SL1021A250R | 200 | 250 | 300 | 400 | 600 | 1 | 5 | 10 | 10 | 135 |
| SL1021A250RF | 200 | 250 | 300 | 400 | 600 | 1 | 5 | 10 | 10 | 135 |
| SL1021A260C | 210 | 260 | 310 | 420 | 600 | 1 | 5 | 10 | 10 | 135 |
| SL1021A260R | 210 | 260 | 310 | 420 | 600 | 1 | 5 | 10 | 10 | 135 |
| SL1021A260RF | 210 | 260 | 310 | 420 | 600 | 1 | 5 | 10 | 10 | 135 |
| SL1021A300C | 240 | 300 | 360 | 450 | 650 | 1 | 5 | 10 | 10 | 135 |
| SL1021A300R | 240 | 300 | 360 | 450 | 650 | 1 | 5 | 10 | 10 | 135 |
| SL1021A300RF | 240 | 300 | 360 | 450 | 650 | 1 | 5 | 10 | 10 | 135 |
| SL1021A350C | 280 | 350 | 420 | 500 | 700 | 1 | 5 | 10 | 10 | 135 |
| SL1021A350R | 280 | 350 | 420 | 500 | 700 | 1 | 5 | 10 | 10 | 135 |
| SL1021A350RF | 280 | 350 | 420 | 500 | 700 | 1 | 5 | 10 | 10 | 135 |
| SL1021A400C | 320 | 400 | 480 | 550 | 800 | 1 | 5 | 10 | 10 | 135 |
| SL1021A400R | 320 | 400 | 480 | 550 | 800 | 1 | 5 | 10 | 10 | 135 |
| SL1021A400RF | 320 | 400 | 480 | 550 | 800 | 1 | 5 | 10 | 10 | 135 |
| SL1021A420C | 345 | 420 | 500 | 600 | 800 | 1 | 5 | 10 | 10 | 135 |
| SL1021A420R | 345 | 420 | 500 | 600 | 800 | 1 | 5 | 10 | 10 | 135 |
| SL1021A420RF | 345 | 420 | 500 | 600 | 800 | 1 | 5 | 10 | 10 | 135 |
| SL1021A450C | 360 | 450 | 540 | 650 | 800 | 1 | 5 | 10 | 10 | 135 |
| SL1021A450R | 360 | 450 | 540 | 650 | 800 | 1 | 5 | 10 | 10 | 135 |
| SL1021A450RF | 360 | 450 | 540 | 650 | 800 | 1 | 5 | 10 | 10 | 135 |
| SL1021A500C | 400 | 500 | 600 | 700 | 900 | 1 | 5 | 10 | 10 | 135 |
| SL1021A500CF | 400 | 500 | 600 | 700 | 900 | 1 | 5 | 10 | 10 | 135 |
| SL1021A500R | 400 | 500 | 600 | 700 | 900 | 1 | 5 | 10 | 10 | 135 |
| SL1021A500RF | 400 | 500 | 600 | 700 | 900 | 1 | 5 | 10 | 10 | 135 |
| SL1021A500X | 400 | 500 | 600 | 700 | 900 | 1 | 5 | 10 | 10 | 135 |
| SL1021A500Y | 400 | 500 | 600 | 700 | 900 | 1 | 5 | 10 | 10 | 135 |
| SL1021A600C | 480 | 600 | 720 | 850 | 1000 | 1 | 5 | 10 | 10 | 135 |
| SL1021A600R | 480 | 600 | 720 | 850 | 1000 | 1 | 5 | 10 | 10 | 135 |
| SL1021A600RF | 480 | 600 | 720 | 850 | 1000 | 1 | 5 | 10 | 10 | 135 |
| SL1021A090RG Obsolete: 2015-02-01 |
70 | 90 | 120 | 550 | 700 | 1 | 5 | 10 | 10 | 52 |
| SL1021A090RS Obsolete: 2009-04-03 Replaced By: SL1021A090RG |
70 | 90 | 120 | 550 | 700 | 1 | 5 | 10 | 10 | 52 |
| SL1021A090T Obsolete: 2009-04-03 |
70 | 90 | 120 | 550 | 700 | 1 | 5 | 10 | 10 | 52 |
| SL1021A200RF-035 Obsolete: 2009-04-03 |
150 | 200 | 250 | 350 | 450 | 1.5 | 5 | 5 | 5 | 135 |
| SL1021A200RG Obsolete: 2015-02-01 |
150 | 200 | 250 | 350 | 450 | 1 | 5 | 10 | 10 | 135 |
| SL1021A200RS Obsolete: 2009-04-03 Replaced By: SL1021A200RG |
150 | 200 | 250 | 350 | 450 | 1 | 5 | 10 | 10 | 135 |
| SL1021A200T Obsolete: 2009-04-03 |
150 | 200 | 250 | 350 | 450 | 1 | 5 | 10 | 10 | 135 |
| SL1021A230C-003 Obsolete: 2009-04-03 |
195 | 230 | 265 | 350 | 800 | 5 | 5 | 5 | 5 | 135 |
| SL1021A230RF-032 Obsolete: 2009-04-03 Replaced By: SL1021A230RF |
184 | 230 | 276 | 350 | 450 | 1.5 | 5 | 5 | 5 | 135 |
| SL1021A230RG Obsolete: 2015-02-01 |
184 | 230 | 276 | 350 | 450 | 1 | 5 | 10 | 10 | 135 |
| SL1021A230RS Obsolete: 2009-04-03 Replaced By: SL1021A230RF |
184 | 230 | 276 | 350 | 450 | 1 | 5 | 10 | 10 | 135 |
| SL1021A230T Obsolete: 2009-04-03 |
184 | 230 | 276 | 350 | 450 | 1 | 5 | 10 | 10 | 135 |
| SL1021A250N-030 Obsolete: 2009-04-03 |
200 | 250 | 300 | 450 | 1.5 | 5 | 5 | 5 | 135 | |
| SL1021A250N Obsolete: 2009-04-03 |
200 | 250 | 300 | 450 | 1.5 | 5 | 5 | 5 | 135 | |
| SL1021A250RG Obsolete: 2015-02-01 |
200 | 250 | 300 | 400 | 600 | 1 | 5 | 10 | 10 | 135 |
| SL1021A250RS Obsolete: 2009-04-03 Replaced By: SL1021A250RG |
200 | 250 | 300 | 400 | 600 | 1 | 5 | 10 | 10 | 135 |
| SL1021A260RG Obsolete: 2015-02-01 |
210 | 260 | 310 | 420 | 600 | 1 | 5 | 10 | 10 | 135 |
| SL1021A260RS Obsolete: 2009-04-03 Replaced By: SL1021A260RG |
210 | 260 | 310 | 420 | 600 | 1 | 5 | 10 | 10 | 135 |
| SL1021A260T Obsolete: 2009-04-03 |
210 | 260 | 310 | 420 | 600 | 1 | 5 | 10 | 10 | 135 |
| SL1021A300C-004 Obsolete: 2009-04-03 |
230 | 300 | 400 | 800 | 5 | 5 | 5 | 5 | 135 | |
| SL1021A300RG Obsolete: 2015-02-01 |
240 | 300 | 360 | 450 | 650 | 1 | 5 | 10 | 10 | 135 |
| SL1021A300RS Obsolete: 2009-04-03 Replaced By: SL1021A300RG |
240 | 300 | 360 | 450 | 650 | 1 | 5 | 10 | 10 | 135 |
| SL1021A350N-036 Obsolete: 2009-04-03 |
280 | 350 | 420 | 700 | 1.5 | 5 | 5 | 5 | 135 | |
| SL1021A350N Obsolete: 2009-04-03 |
280 | 350 | 420 | 700 | 1.5 | 5 | 5 | 5 | 135 | |
| SL1021A350RG Obsolete: 2015-02-01 |
280 | 350 | 420 | 500 | 700 | 1 | 5 | 10 | 10 | 135 |
| SL1021A350RS Obsolete: 2009-04-03 Replaced By: SL1021A350RG |
280 | 350 | 420 | 500 | 700 | 1 | 5 | 10 | 10 | 135 |
| SL1021A350T Obsolete: 2009-04-03 |
280 | 350 | 420 | 500 | 700 | 1 | 5 | 10 | 10 | 135 |
| SL1021A400RG Obsolete: 2015-02-01 |
320 | 400 | 480 | 550 | 800 | 1 | 5 | 10 | 10 | 135 |
| SL1021A400RS Obsolete: 2009-04-03 Replaced By: SL1021A400RG |
320 | 400 | 480 | 550 | 800 | 1 | 5 | 10 | 10 | 135 |
| SL1021A420R-040 Obsolete: 2009-04-03 Replaced By: SL1021A420R |
336 | 420 | 504 | 800 | 1.5 | 5 | 5 | 5 | 135 | |
| SL1021A420RG Obsolete: 2015-02-01 |
345 | 420 | 500 | 600 | 800 | 1 | 5 | 10 | 10 | 135 |
| SL1021A420RS Obsolete: 2009-04-03 Replaced By: SL1021A420RG |
345 | 420 | 500 | 600 | 800 | 1 | 5 | 10 | 10 | 135 |
| SL1021A450RG Obsolete: 2015-02-01 |
360 | 450 | 540 | 650 | 800 | 1 | 5 | 10 | 10 | 135 |
| SL1021A450RS Obsolete: 2009-04-03 Replaced By: SL1021A450RG |
360 | 450 | 540 | 650 | 800 | 1 | 5 | 10 | 10 | 135 |
| SL1021A500N-036 Obsolete: 2009-04-03 |
400 | 500 | 600 | 1000 | 1.5 | 5 | 5 | 5 | 135 | |
| SL1021A500N Obsolete: 2009-04-03 |
400 | 500 | 600 | 1000 | 1.5 | 5 | 5 | 5 | 135 | |
| SL1021A500RG Obsolete: 2015-02-01 |
400 | 500 | 600 | 700 | 900 | 1 | 5 | 10 | 10 | 135 |
| SL1021A500RS Obsolete: 2009-04-03 Replaced By: SL1021A500RG |
400 | 500 | 600 | 700 | 900 | 1 | 5 | 10 | 10 | 135 |
| SL1021A500T Obsolete: 2009-04-03 |
400 | 500 | 600 | 700 | 900 | 1 | 5 | 10 | 10 | 135 |
| SL1021A600RG Obsolete: 2015-02-01 |
480 | 600 | 720 | 850 | 1000 | 1 | 5 | 10 | 10 | 135 |
| SL1021A600RS Obsolete: 2009-04-03 Replaced By: SL1021A600RG |
480 | 600 | 720 | 850 | 1000 | 1 | 5 | 10 | 10 | 135 |
