Bluetooth smart module
Datasheet
Features
- Module embedded with Fujitsu Components' Data Communication (FDC) profile
- FDC is a SPP (serial port profile) like profile ideally suited for sensing, monitoring, & wearable applications
- 60+ simple text commands ensure quick & easy module integration
- Bluetooth specification version 4.1 (single mode, peripheral module)
- Output Power: +4dBm max.
- Receiver sensitivity: basic rate -88dBm typical
- Host interface: UART (115.2kbps)
- Operating temperature: -40 to +85 degrees C at power supply 1.9VDC to 3.6VDC, -25 to +75 degrees C at 1.8VDC to 3.6VDC
- Storage temperature: -40 to +85 degrees C
- 11.5 x 7.9 x 1.7mm
- Module has embedded 32MHz clock
- RAM: 16K bytes
- Connection to external 32kHz clock available via 13pin/14pin (GPIO_27 /GPIO_26)
- RoHS compliant
- Certifications: FCC/IC/CE/QDID/Radio Act (Japan)

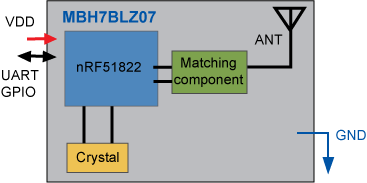

Block Diagram
