Bluetooth smart module
Описание
Особенности
- Module embedded with Fujitsu Components' Data Communication (FDC) profile
- FDC is a SPP (serial port profile) like profile ideally suited for sensing, monitoring, & wearable applications
- 60+ simple text commands ensure quick & easy module integration
- Bluetooth specification version 4.1 (single mode, Peripheral module)
- Output Power: +4dBm max.
- Receiver sensitivity: basic rate -88dBm typical
- Host interface: UART (115.2kbps)
- Operating temperature: -40 to +85 degrees C
- Storage temperature: -40 to +85 degrees C
- Supply voltage: 1.9 to 3.6VDC
- 10.5 x 9.2 x 1.6mm
- Module has embedded 16MHz clock
- RAM: 16K bytes
- Connection to external 32kHz clock available via 13pin/14pin (GPIO_27 /GPIO_26)
- RoHS compliant

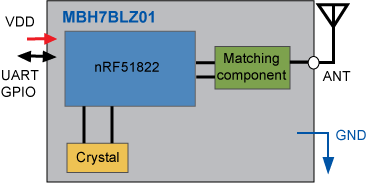

Block Diagram
